Brass Anchors

WELCOME HBK INTERNATIONAL

Manufacturer & Exporter of Ferrous & Non-Ferrous Metal Based Components

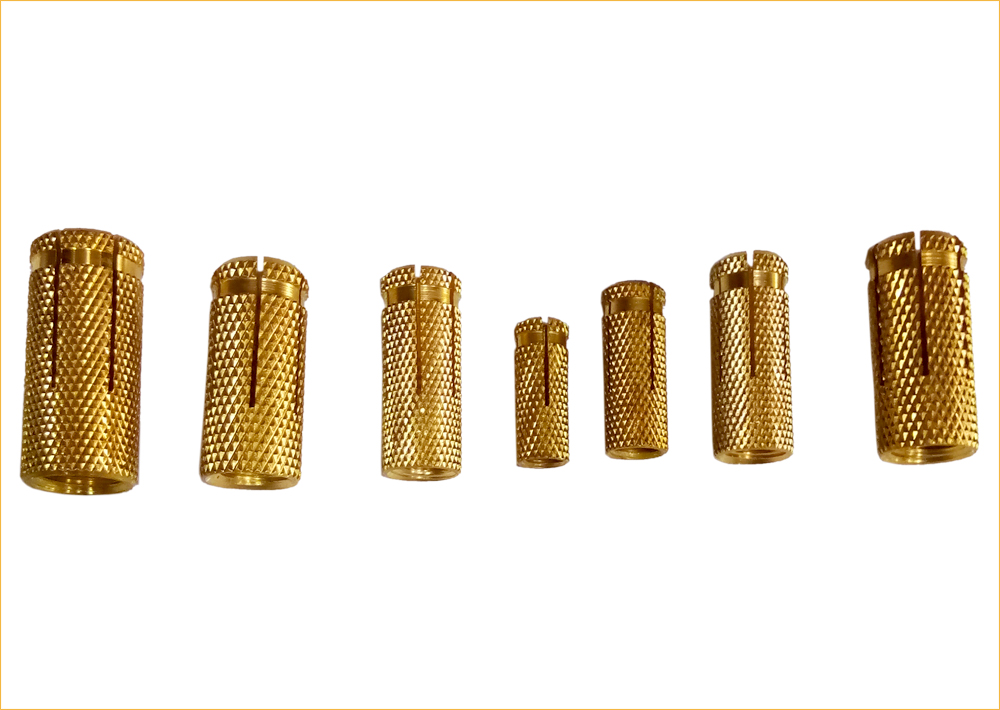

Brass Anchors

 Thread Size M4 M5 M6 M8 M10 M12 M14 M16
 Outside (mm) 5 6.5 8 10 12 15 18 20
 Full Length (mm) 15 20 23 28 33 38 43 50
 Safe Static Load Tension (KN) 0.02 0.87 1.10 1.40 2.20 2.30 2.50 2.85


Types of Brass Anchor

  •   Brass Round Stud Anchors
  •   Brass Wood Anchors
  •   Brass Pool Anchor
  •   Brass Concrete Anchors
  •   Brass Drop Anchor
  •   Brass Sleeve Anchors
  •   Brass Slotted Anchors
  •   Brass Knurling Anchors

Applications

  •   Air ducts
  •   Cable trays
  •   Curtain rails
  •   Substructures
  •   Rails
  •   Protective wall panels
  •   Safety covers
  •   Suspended ceilings

Material

  •   Brass / Copper Alloy - Casting / Extrusion

Material Type

  •   Free Cutting Brass IS 319 Type (l)


  • Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc.


  • Any Special Brass Material Composition as per customer’s requirement

Thread

  •   ISO Metric (MM Threads)
  •   BA Threads
  •   BSW Threads (Inches)
  •   UNC, UNF, UNEF and NPT Threads
  •   BSP & BSPT (Parallel & Taper Threads)
  •   Any threads as per specifications

Finishing & Coating

  •   Natural – Clean from Oil & Burns
  •   Brass Finish
  •   Any coating as per customer specifications

Packaging

  •   Bag Packaging
  •   Inner Plastic Packing
  •   Carton Packaging
  •   Wooden Carton Packing

Special Features

  •   Thread as per International Go and Not Go Gauge Standard.
  •   Deep Groove for maximum Pull out Resistance.


  • Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush to enter.
